+Contributing to the debugger front-end
+~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+
+To make changes to the debugger extension, a kernel with support for debugging is required.
+
+Check out the user documentation to learn how to install such kernel: :ref:`debugger`.
+
+Then refresh the page and the debugger sidebar should appear in the right area.
+
+The Debugger Adapter Protocol
+'''''''''''''''''''''''''''''
+

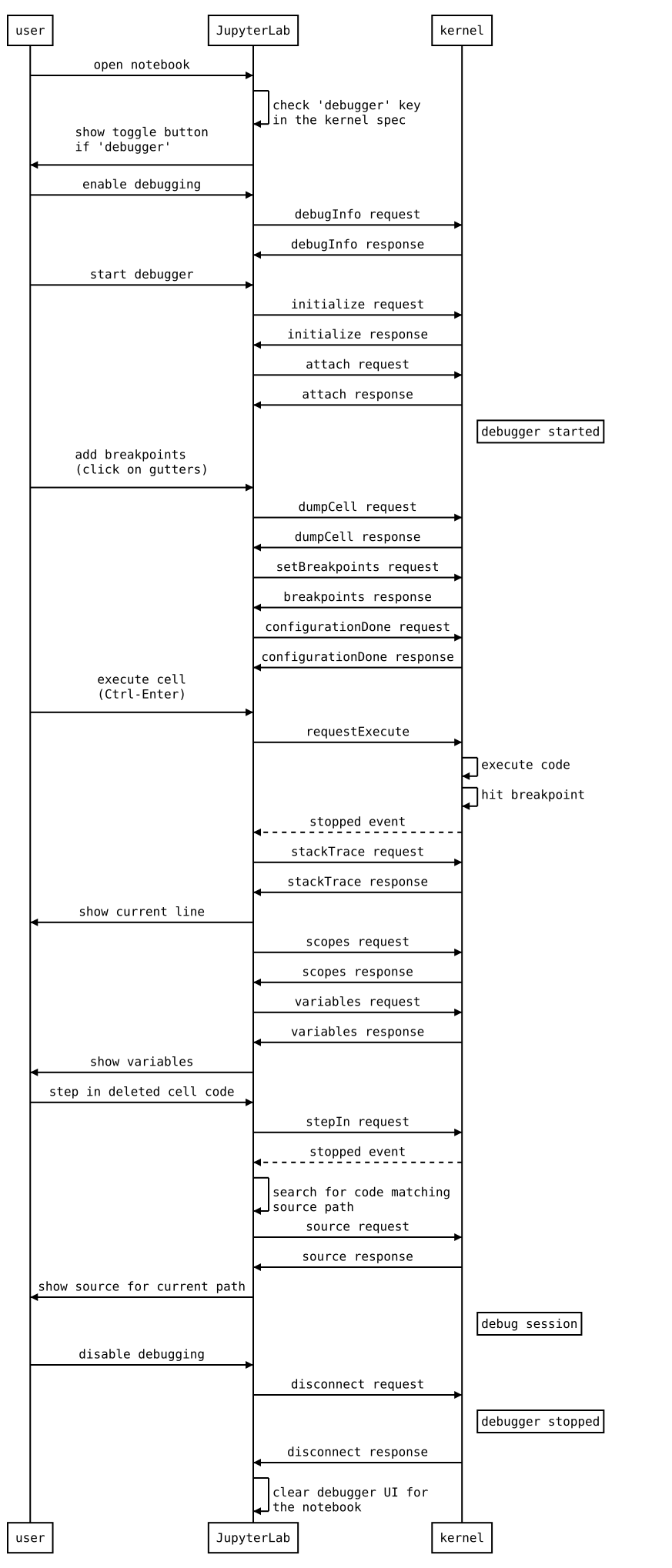

+The following diagram illustrates the types of messages sent between the JupyterLab extension and the kernel.
+
+.. image:: ./debugger_protocol_diagram.png
+
+Inspecting Debug Messages in VS Code
+''''''''''''''''''''''''''''''''''''
+
+Inspecting the debug messages in VS Code can be useful to understand when debug requests are made (for example triggered by a UI action), and to compare the behavior of the JupyterLab debugger with the Python debugger in VS Code.
+
+The first step is to create a test file and a debug configuration (``launch.json``):
+
+.. image:: ./debugger_launch_configuration.png
+
+.. code:: json
+
+   {
+      "version": "0.2.0",
+      "configurations": [
+         {
+            "name": "Python: Current File",
+            "type": "python",
+            "request": "launch",
+            "program": "${file}",
+            "console": "integratedTerminal",
+            "env": { "DEBUGPY_LOG_DIR": "/path/to/logs/folder" }
+         }
+      ]
+   }
+

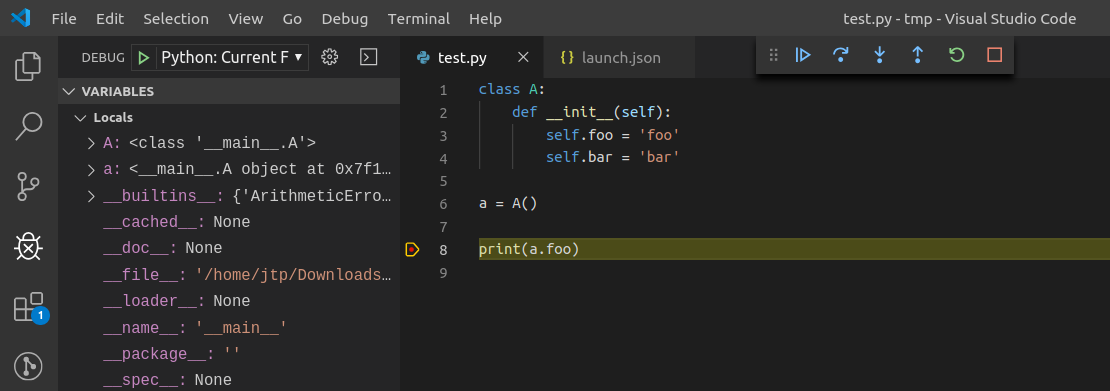

+Then start the debugger:
+
+.. image:: ./debugger_vscode_start.png
+
+The content of the log file looks like this:
+
+.. code:: bash
+
+   ...
+
+   D00000.032: IDE --> {
+                  "command": "initialize",
+                  "arguments": {
+                     "clientID": "vscode",
+                     "clientName": "Visual Studio Code",
+                     "adapterID": "python",
+                     "pathFormat": "path",
+                     "linesStartAt1": true,
+                     "columnsStartAt1": true,
+                     "supportsVariableType": true,
+                     "supportsVariablePaging": true,
+                     "supportsRunInTerminalRequest": true,
+                     "locale": "en-us"
+                  },
+                  "type": "request",
+                  "seq": 1
+               }
+
+   ...
+
+With:
+
+- ``IDE`` = VS Code
+- ``PYD`` = pydev debugger
+- Messages follow the `DAP <https://microsoft.github.io/debug-adapter-protocol/specification>`_
+
+References
+''''''''''
+
+- Dump cell and state restoration: https://github.com/jupyterlab/debugger/issues/52
+- Protocol Overview: https://microsoft.github.io/debug-adapter-protocol/overview
+- Specification: https://microsoft.github.io/debug-adapter-protocol/specification
+
+
